Potentiometer Upgrade Kit for Logitech G Series Pedals (v1.1) – G25/G27/G29/G920/G923

81 reviews

£23.99 – £68.39

SKU: G-Pedal-Pot-Kit Categories: Pedal Mods, Pedal Mods

Description

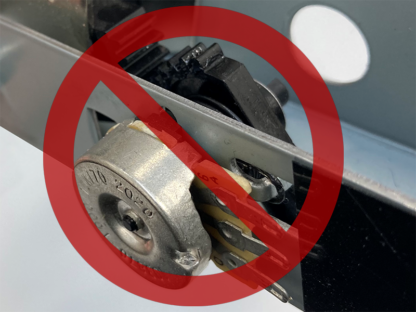

This kit replaces the standard Logitech pedal potentiometer with a high quality linear position sensor. If your old pots are worn then this will solve your problem. If you want to upgrade your pedal potentiometers to a smoother, finer and more reliable sensor then this is for you.

This design replaces the stock potentiometer, gears and springs with a sensor directly driven by the pedal. Fully compatible with the PS4, PS5, Xbox and PC.

Features:

Plug and Play – No soldering required
Gives the same output range as the stock potentiometers
Fully compatible with the PS4, PS5, Xbox and PC
Fits Logitech G25 / G27 / G29 / G920 / G923 pedals
Suitable for accelerator, brake and clutch pedals
Fully engineered solution
12 Month Warranty

Installation Video:

Pack Contents:

PCB with onboard linear potentiometer
Potentiometer Wiper (CNC machined aluminium)
Assorted Hardware
2mm Hex Key

Support

This kit comes with 12 Month Warranty from date of purchase.
If you have a problem installing this product after purchase then please log a support ticket.

30 day returns

In the unlikely event that you are disappointed by your Potentiometer Upgrade Kit you can return it for a refund (within 30 days of you receiving your order).

Questions and answers of the customers

Would this make throttle inputs more realistic or just make it last longer?

Q Would this make throttle inputs more realistic or just make it last longer?
Asked on 21st June 2024 12:12 am

A
Hi,.
It makes it smoother as it gets rid of the gears, springs and old style potentiometer.
And makes it more reliable

Thinking about upgrading my pedals and have watched the installation video. I notice that in the video the pcb moves up and down but it's not clear to me how the pcb should be positioned. Is the position critical to proper operation? Regards Colin

Q Thinking about upgrading my pedals and have watched the installation video. I notice that in the ...... Read more
Asked on 9th March 2024 9:06 pm
A
For most customers it is not critical. There are small manufacturing tolerances in the pedals and our pot kit, also the pedals could be worn or distorted. These things can sometimes add up to the wiper going off the edge of the sensor at zero or full pedal.
If signal is being lost at zero pedal, the PCB needs raising.
If signal is being lost at full pedal, the PCB needs lowering.

How do i know that nylon screw aligned right as its very hard to view in place?

Q How do i know that nylon screw aligned right as its very hard to view in place?
Asked on 18th October 2023 11:20 am

A Good question! If you get problems when you slam the throttle to full, then the PCB is too high. If you get problems when you let the throttle spring back to zero, then the PCB is too low.

Can you tell which size hex key is required to disassemble the pedal? Would be happy see all the equipments needed to disassemble pedal to install your product. Thanks in advance.

Q Can you tell which size hex key is required to disassemble the pedal? Would be happy see all the ...... Read more
Asked on 10th May 2023 6:27 am
A
5mm Hex Key (Pedal pivot bolts)
10mm Spanner/wrench (Pedal pivot nuts)
2.5mm Hex Key (Pedal Foot Plates)
Long Nose Pliers (Spade Connectors)
Philips Screwdrivers

Hi! Does this work with consoles too, or just PC?

Q Hi! Does this work with consoles too, or just PC?
Asked on 19th April 2023 10:51 pm

A
Yes it works perfectly on consoles. The pot kit has the same output range as the stock potentiometers.

Is it safe to assume that the pin marked white on your board , lines up with the yellow on your cables that you sell to go from pedals to wheel ?

Q Is it safe to assume that the pin marked white on your board , lines up with the yellow on your c...... Read more
Asked on 4th April 2023 7:50 pm

A
Yes, that is correct.

Buenos días mandan a Canarias muchas gracias

Q Buenos días mandan a Canarias muchas gracias
Asked on 27th May 2022 5:34 am

A
Hola Alfonso,
Para este artículo, el costo postal sería de £ 3.25
Si, Al finalizar la compra ingrese lo siguiente:
Country/Region:Spain
Province: tu isla
Gracias,
Rob

hi, does it require cleaning like a normal potentiometer?

Q hi, does it require cleaning like a normal potentiometer?
Asked on 30th January 2022 10:50 pm

A
The pots are sealed and do not need cleaning.

How much is the single potentiometer replacement kit in American money ?

Q How much is the single potentiometer replacement kit in American money ?
Asked on 29th December 2021 9:03 pm

A
Hi Paul,
At the moment £17.49 (GBP) is equal to approx. $25 (USD).
Cheers
Rob

Does it improve the performance of the pedals and how? will I notice a difference versus stock?

Q Does it improve the performance of the pedals and how? will I notice a difference versus stock?
Asked on 28th September 2021 12:48 am

A The main advantage is the improved reliability. The stock pots are affected by dirt, dust and wear relatively quickly. The linear pot used in our kit is sealed and has a life of 1,000,000+ cycles.

Only logged in customers can leave a review.

Additional information

Weight	.02 kg
Dimensions	4 × 4 × 1 cm
Pack Size	Single (x1), Twin Pack (x2), Triple Pack (x3)
Manufacturer	AXC SIM
